Tehničke karakteristike uređaja FORMIGA P 100
Technical Data

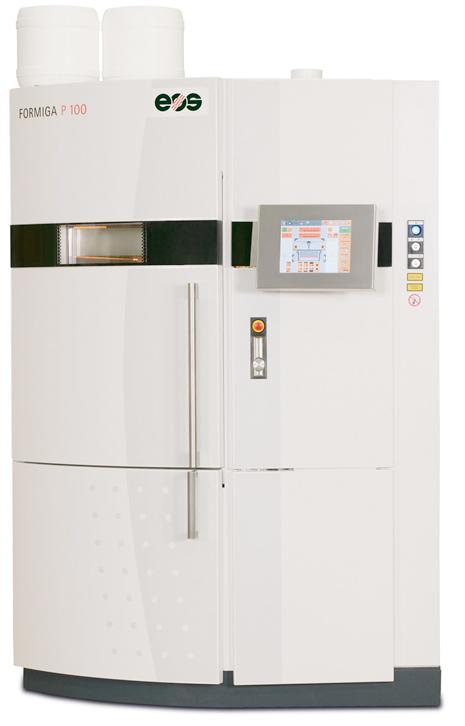

EOS Formiga p100 Effective building volume
200 mm x 250 mm x 330 mm (7.9 x 9.8 x 13 in)
Building speed
(material-dependent) up to 24 mm height/h (0.94 in/h)
Layer thickness
(material-dependent) typically 0.1 mm (0.004 in)
Support structure not necessary
Laser type CO2, 30W
Precision optics F-theta lens
Scan speed during build process up to 5 m/s (16.4 ft/sec)
